Totally Open Arduino-Compatible Hardware Development

Rock Bottom Freeduino Kit (RBFK) - This kit is the absolute minimalist implementation of Arduino(tm). It has the plain basics for a beginner wanting to experiment without a big investment, or an old timer wanting to build a basic runtime Arduino board. It consists of

• either the ATmega328P-20PU (a drop in pin-for-pin replacement for the 168), or the ATmega644P-20PU (the Sanguino chip) with the appropriate DIP socket
• pushbutton reset switch and 10k pullup resistor
• 16.0000 MHz crystal and 2 - 20 pf capacitors

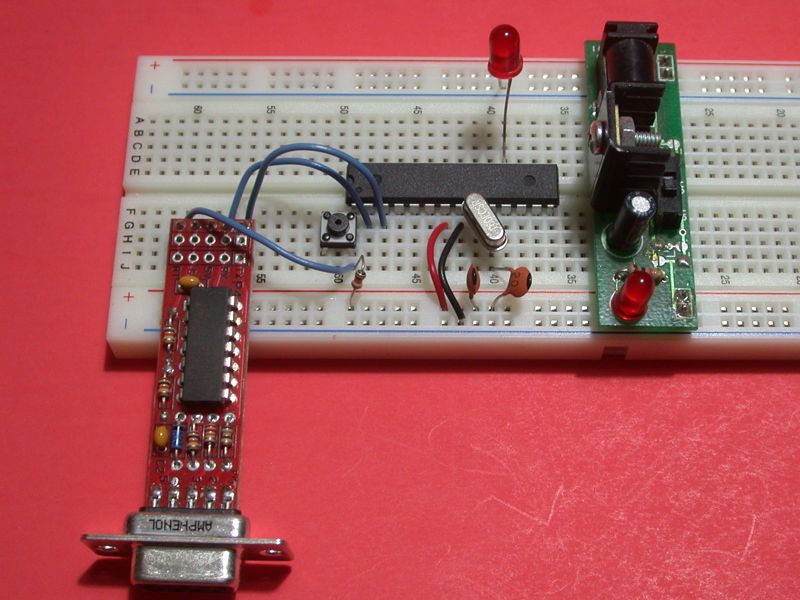

• programming adapter, breadboard, and breadboard power supply show in the above picture ARE NOT INCLUDED and must be purchased separately.
• Instructions and schematic for assembling a rock bottom Freeduino on a breadboard are here. They can be easily extrapolated for a handwired proto board.
• You are going to need to download the Arduino software, which is a complete Integrated Development Environment (IDE) written in Java and available for Windows, Mac, and Linux.
• To take best advantage of the ADABootloader we ship in all of our chips, you will want to download the latest complete ADABoot package, about 110 KB, which has the proper additions to boards.txt for ADABoot168/328P/644P. It also has a complete set of bootloaders and core software for Freeduino systems with ADABoot. This file last updated on .

DVD (currently containing over 1GB) with the latest Arduino, Wiring, Processing and Pure Data software in all three formats, Linux, MacOSX, and Windows. In addition, there is a collection of third party Arduino libraries and a raft of sample software. There's over 100 MB of PDF files containing reference materials, articles, tutorials and general interest material for Arduino. There is a folder of relevant data sheets for the Arduino processors, related devices and peripherals.

This disk is included FREE with any Freeduino order totalling over $50

Arduino Resource DVD

RBFK328 Kit, programmed ATmega328P-20PU chip and socket, crystal and caps, reset switch and resistor

Buy 10 kits and get a FREE P4B adapter kit

Qty = 1

Qty = 3

Qty = 5

Qty = 10

RBFK644 Kit, programmed ATmega644P-20PU chip and socket, crystal and caps, reset switch and resistor

Buy 5 kits and get a FREE P4b adapter kit

Qty = 1

Qty = 3

Qty = 5

Brewtroller Bundle - if you came looking for the processor for Jeremiah Dillingham's Brewtroller, this is the right place. You may, however, wish to check a Brewtroller Special Bundle I have put togther containing the processor, the temperature sensors and the 4x20 display and save some money on the parts and even more on shipping.

The default resonant element supplied with the RBFK is a 16 MHz crystal with 2 20 pF caps. This is because it lends itself to being easily setup on a breadboard. I will, upon request, substitute a 16 MHz 3 pin ceramic resonator for the crystal and caps. Just put your request into the notes to the seller area on your PayPal order, or in writing on mail orders

Add either RS232 P4B or USB-BUB serial programming adapter to a RBFK purchase

This price good only with purchase of RBFK

Bundled with serial programming adapter (RS232/P4 or USB/BUB, 830 hole breadboard and breadboard power supply with an RBFK

This price good only with purchase of RBFK

All done ordering? Be sure to check out shipping surcharges
